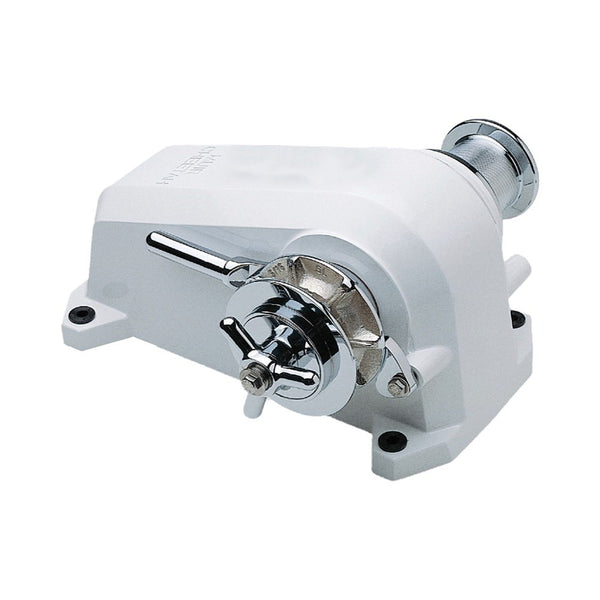

Muir HR2500 Cheetah Compact Horizontal Windlass
- Rope chain combination gypsy for rope & chain combination or chain only
- Manual Override System (MORS)
-
Gypsy lock / pawl
- Cleat on housing
-
Heavy duty dual direction motor in 12 Vdc, 24 Vdc & Hydraulic
- Durable marine grade white gloss finish alloy housing
- Fully enclosed motor & gearbox
- Independent gypsy and capstan operation
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- Stainless steel drive shaft
- Cone clutch/brake
- Shaft seal
- Clutch release handle
- Installation/Operation booklet
|
Vessel Length
|
13 - 17 m (42 - 55 ft)
|
|
Power Supply
|
12 / 24 Vdc
|
|
Motor
|
1200 W
|
|
Hydraulic Pressure
|
10 MPa (1450 psi)
|
|
Hydraulic Flow
|
20 L/min (5.5 gal/min)
|
|
Max Load
|
1136 kg (2500 lb)
|
|
Work Load
|
284 kg (624 lb)
|
|
Amps Work Load
|
120 / 75
|
|
Max Line Speed
|
15 m / min (48 ft / min)
|
|
Chain Size
|
8 - 10 - 13 mm (5/16 - 3/8 - 3/4”)
|
|
Rope Size
|
14 - 16 - 19 mm (9/16 - 5/8 - 3/4”)
|
|
Net Weight
|
DC 36 kg (79 lb)
HYD 35 kg (77 lb)
|
|
Manual Operation
|
MORS (Standard)
|
