Please contact us (sales@eastmarineasia.com ) or use the form above for price quote.
*** Worldwide drop-ship directly from factory ***
Please include information like your intended voltage (or hydraulic type) and size of your chain.

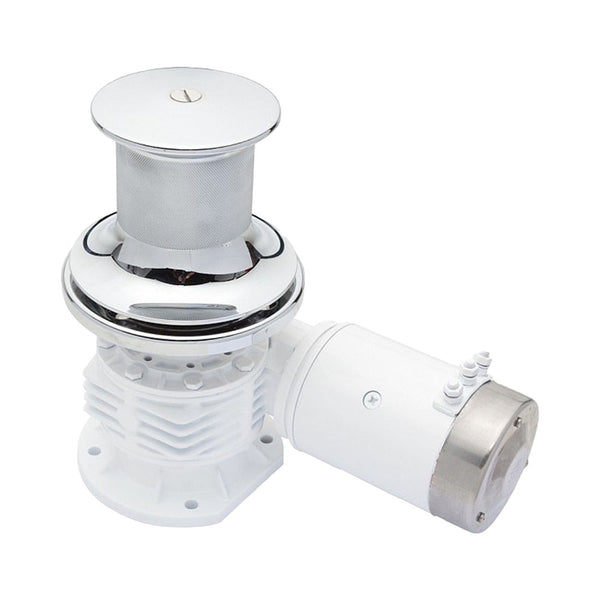

Muir VC650 Vertical Powered Capstans
- Deck hugging snag free design
- Unit can be mounted horizontally
- Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models
- Capstan features heavy duty knurled finish for increased grip
- Heavy duty dual direction motor in 12 Vdc & 24 Vdc
- Self-aligning gearbox / adaptor
- Stainless steel shaft
- Stainless steel mounting bolts
- Shaft seal
- Installation / operation booklet
|
Vessel Length
|
8 - 11 m (26 - 36 ft)
|
|
Power Supply
|
12 / 24 Vdc
|
|
Motor
|
600 W
|
|
Max Load
|
295 kg (650 lb)
|
|
Work Load
|
74 kg (162 lb)
|
|
Amps Work Load
|
80 / 50
|
|
Max Line Speed
|
20 m / min (64 ft / min)
|
|
Rope Size
|
10 - 12 mm (3/8 - 1/2”)
|
|
Net Weight
|
DC 9 kg (20 lb)
|
SKU: #
