Ronstan Series 45 BB Single Core Block - Swivel Shackle Head

Previous Product | Next Product

Ronstan Series 45 BB Single Core Block - Swivel Shackle Head

฿2,485
In stock, dispatched in 24 hours
To pre-order this variant call +66 (0) 76 239 113 or contact us:

Name:*

Email:*
Phone number:
Message: *
* Required Fields
Looking for wholesale pricing & volume discounts? Become a dealer! »»
Product Description

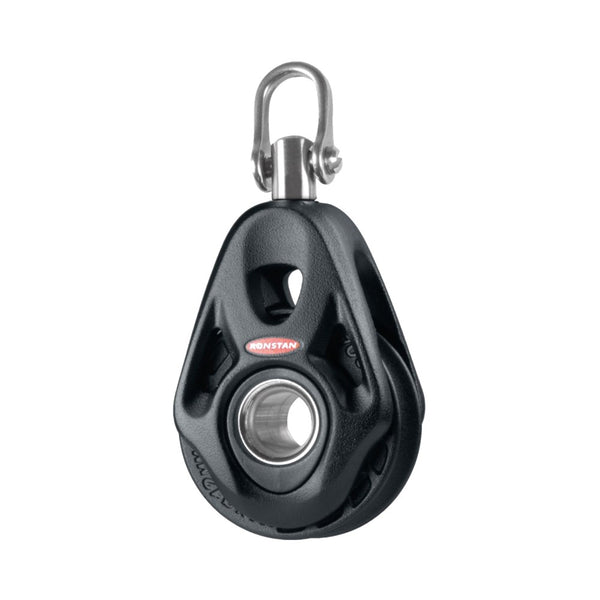

Ronstan RF44100 Series 45 Ball Bearing Single Core Block - Swivel Shackle Head

  • High dynamic and static load capacity
  • Efficient 2-stage bearing system
  • Ball bearings to counteract side thrust loads
  • Class leading performance and sleek, contemporary styling
  • Durable aluminium alloy cheek plates
  • Central hub can be used as a becket take-off or tie-up point, max 11.5mm line


Applications

  • Ideal for mainsheet, halyard and spinnaker sheet applications on boats to 10 m (33 ft)
  • Various control line applications on larger yachts
  • Alloy sheave models are available for use with wire


Materials

  • Sheave: UV stabilised Acetal
  • Cheek body: Aluminium Alloy
  • Ball Bearings: High compression strength carbon black acetal
  • Shackle, head post & hub: Grade 316 stainless steel


Specifications

  • Sheave ?: 45 mm
  • Max Rope ?: 12 mm
  • Max Cable ?: -
  • Pin ?: 5 mm
  • MWL: 700 kg
  • BL: 1400 kg
  • Weight: 104 g


SKU: #
