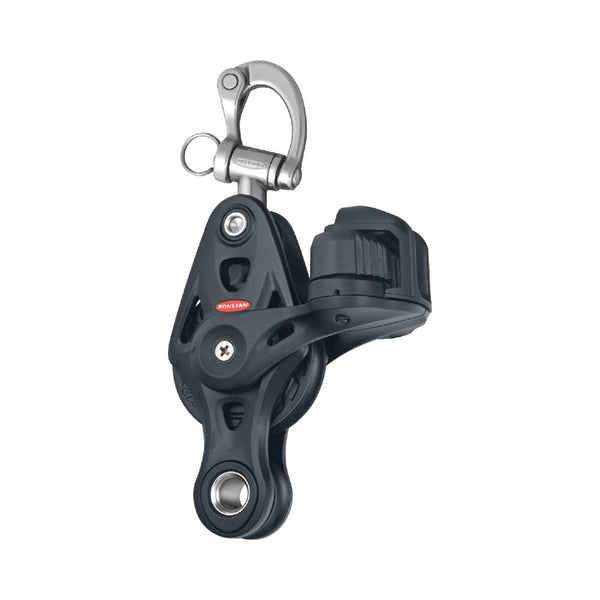

Ronstan Series 60 BB Fiddle Core Block - Cleat, Snap Shackle Head

฿9,440
In stock, dispatched in 24 hours
To pre-order this variant call +66 (0) 76 239 113 or contact us:

Name:*

Email:*
Phone number:
Message: *
* Required Fields
Looking for wholesale pricing & volume discounts? Become a dealer! »»
Product Description

Ronstan Series 60 Ball Bearing Fiddle Core Block, Cleat, Snap Shackle Head - RF64523

  • Class leading performance and sleek, contemporary styling
  • Excellent dynamic and high static load performance
  • Less than half the friction of the nearest competitor
  • Adjustable cleating angle
  • Fitted with high performance C-cleat and fairlead for secure and easy cleating
  • Versatile trunnion snap shackle
  • 360 degree rotation with side-to-side articulation
  • Integrated becket through the hub of the lower sheave
  • *** Line load through cleat not to exceed 175 kg (385 lb)


Applications

  • Ideal for mainsheet, halyard and spinnaker sheet applications on boats to 11 m (36 ft).
  • Various control line applications on larger yachts.
  • Alloy sheave models are available for use with wire.
  • Ideal for creating simple vang and mainsheet systems up to 4:1 on boats to 12 m (40 ft)


Materials

  • Sheaves: UV stabilised Acetal
  • Cheek plates & cleat arms: Aluminium alloy
  • Ball Bearings: High compression strength carbon black Acetal
  • Shackle, post & hub: Grade 316 stainless steel
  • Padeye & snap shackle: Grade 15-5PH stainless steel
  • Snap shackle: Grade 15-5PH investment cast stainless steel
  • Cleat: Fibre reinforced composite
  • Snap shackle: 15-5PH investment cast stainless steel
  • Cleat: Fibre reinforced composite


Specifications

  • Sheave Ø: 60 + 30 mm
  • Max. Rope Ø: 12 mm
  • Max. Cable Ø: - mm
  • Pin Ø: - mm
  • MWL: 1000 *** kg
  • BL: 2000 *** kg
  • Weight: 540 g
SKU: #
