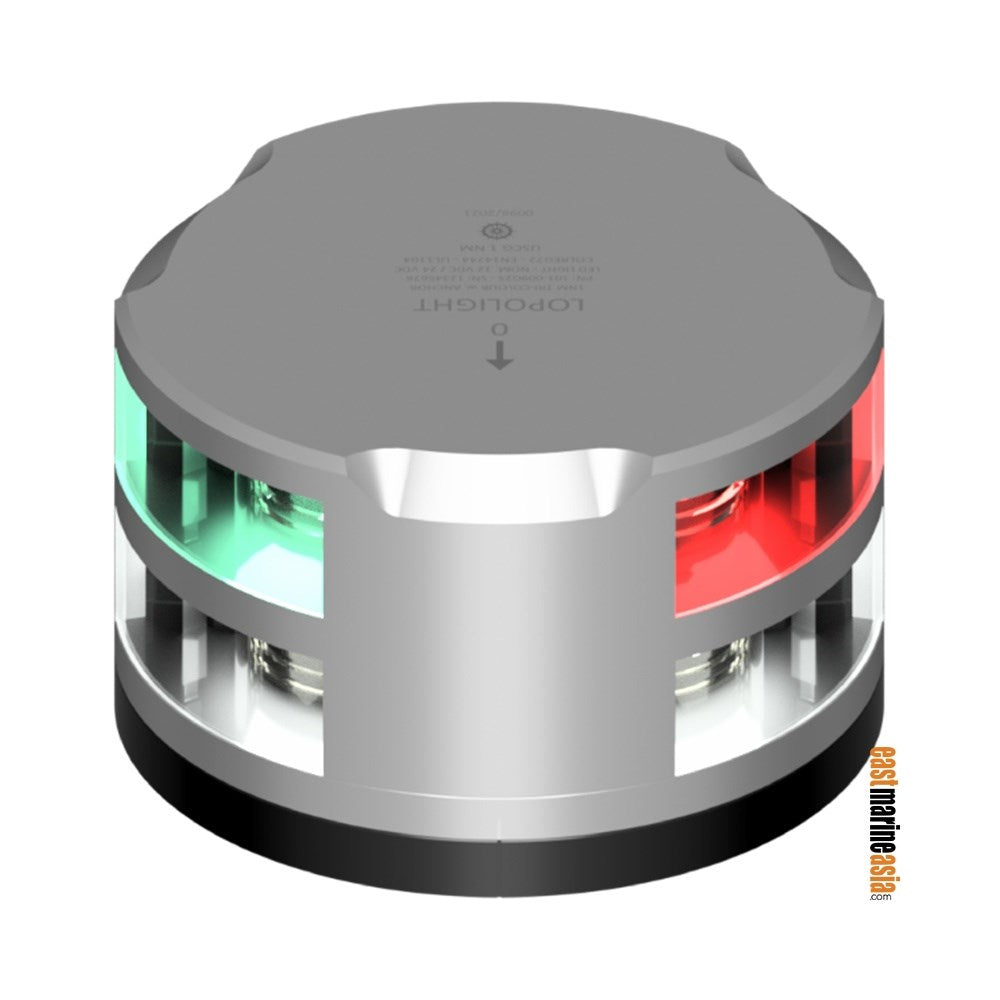

Lopolight 101-009-FB Tri-Colour / Anchor LED Navigation Light - Silver
FB (flat base) POM mounting system
Certification: Certified by DNV
Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Mounting: Horizontal
Materials: Silver anodised aluminium 25 µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
Operating voltage: 10 - 32 Vdc
IP rating: IP68
Power draw: 2.6 W
Connection: 0.7 m cable
Current consumption: 150 mA @ 12 Vdc
Min feed wire gauge: 0.5 mm2 (AWG 22)
Size: Ø 92.5 x36 mm
Weight: 0.73 kg
For more product information, please visit:
👉🏻PRODUCT DATA SHEET

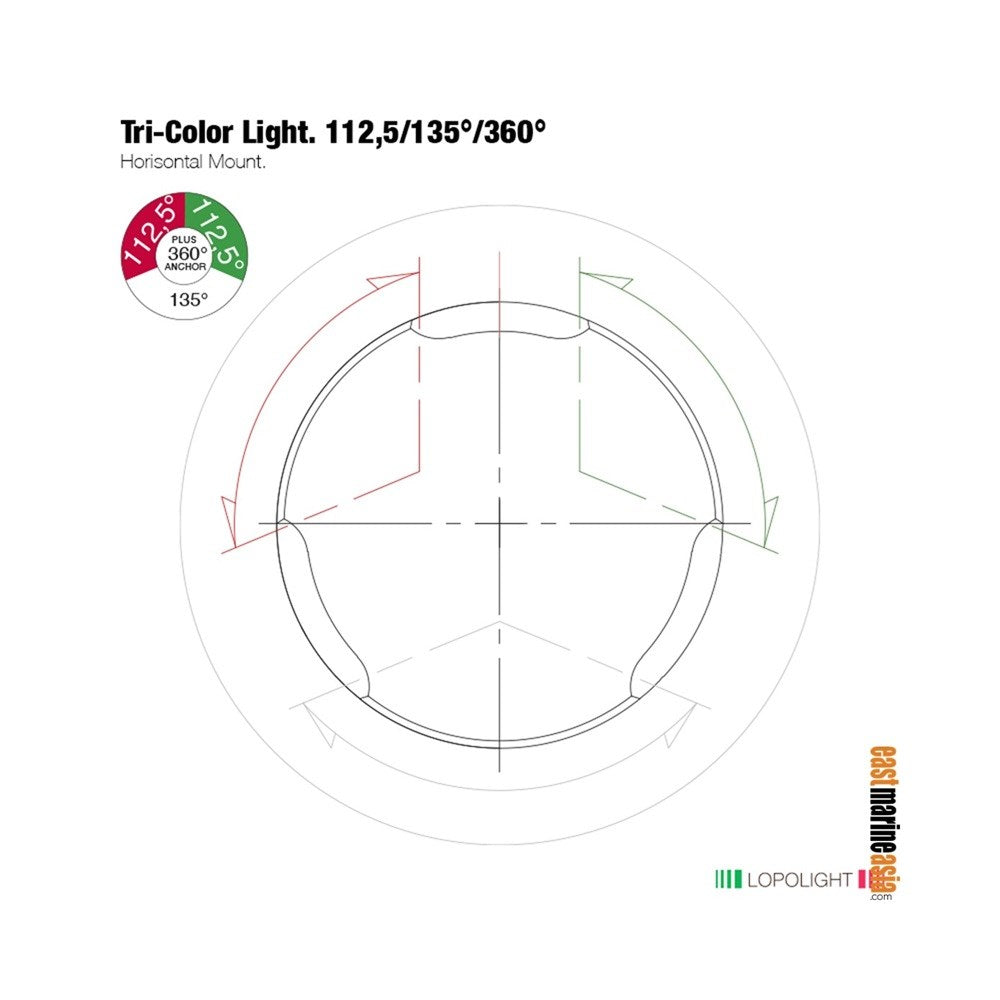

👉🏻TECHNICAL DRAWING
SKU: #
