Use Option (1) to select Shaft Diameter size

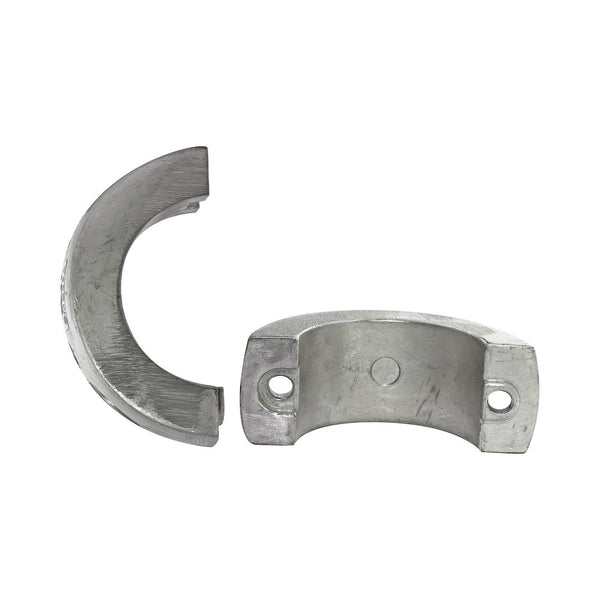

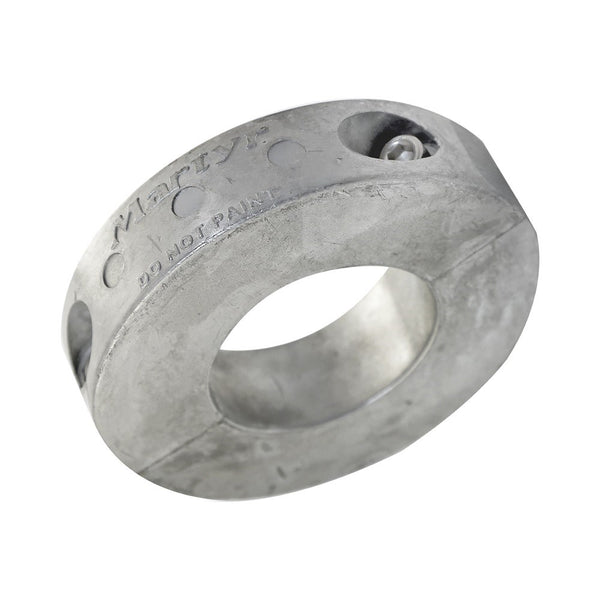

Martyr Limited Clearance Shaft Anodes features easy installation underwater, bolt retaining washers prevent the anode from falling off. Full shaft contact, 100% circular radius. Interlocking halves with extra alloy around fastener.
|
Product
Number
|
Weight
(kg)
|

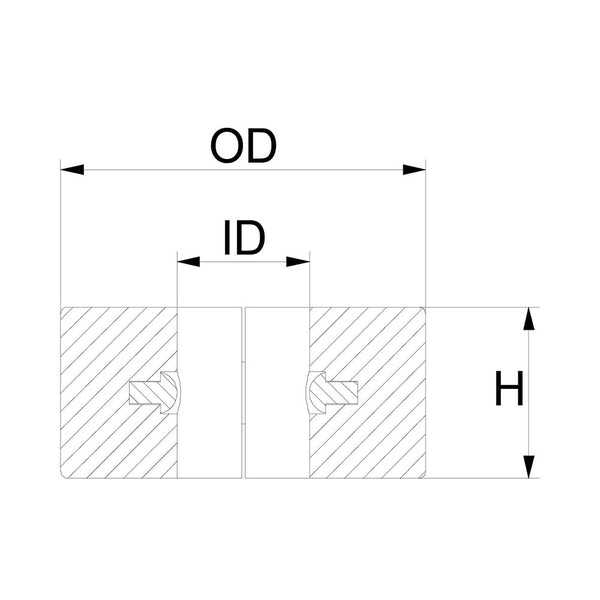

H |
OD |
ID |
CMC01 |
0.30 |
1" (25 mm) |
2.12" (54 mm) |
0.75" (19 mm) |
CMC02 |
0.29 |
1" (25 mm) |
2.12" (54 mm) |
0.87" (22 mm) |
CMC03 |
0.55 |
1.25" (32 mm) |
2.5" (63 mm) |
1" (25 mm) |
CMC04 |
0.50 |
1.25" (32 mm) |
2.5" (63 mm) |
1.12" (28 mm) |
CMC05 |
0.52 |
1.25" (32 mm) |
2.5" (63 mm) |
1.25" (32 mm) |
CMC06 |
0.73 |
1.25" (32 mm) |
3" (76 mm) |
1.37" (35 mm) |
CMC07 |
0.67 |
1.25" (32 mm) |
3" (76 mm) |
1.5" (38 mm) |
CMC08Z |
1.03 |
1.37" (35 mm) |
3.5" (89 mm) |
1.75" (44 mm) |
CMC09 |
0.95 |
1.37" (35 mm) |
3.5" (89 mm) |
2" (51 mm) |
CMC09A |
0.80 |
1.37" (35 mm) |
3.5" (89 mm) |
2.25" (57 mm) |
CMC12 |
2.45 |
1.5" (38 mm) |
5" (127 mm) |
2.5" (63 mm) |
CMC12A |
2.35 |
1.5" (38 mm) |
5" (127 mm) |
2.75" (70 mm) |
CMC13 |
2.20 |
1.5" (38 mm) |
5" (127 mm) |
3" (76 mm) |
CMC14 |
2.57 |
1.5" (38 mm) |
6.5" (165 mm) |
3.5" (89 mm) |
CMC15 |
3.63 |
1.5" (38 mm) |
6.5" (165 mm) |
4" (101 mm) |
