Product Description

Please contact us (sales@eastmarineasia.com ) or use the form above for price quote.

*** Worldwide drop-ship directly from factory ***

Please include information like your intended voltage (or hydraulic type) and size of your chain.

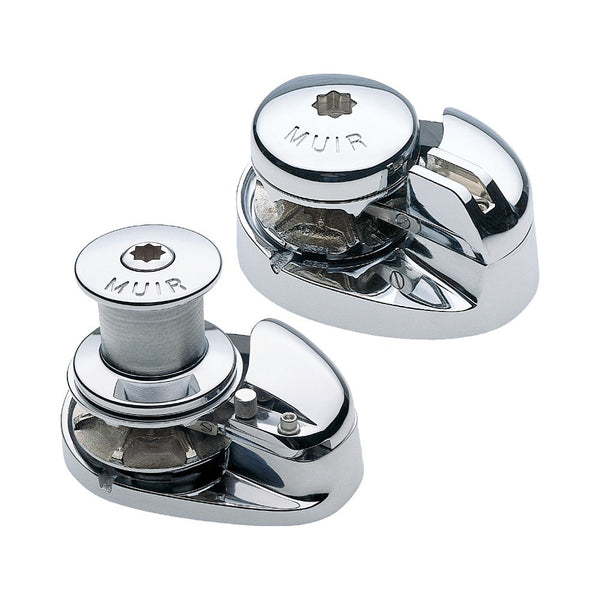

Muir VR1250 / VRC1250 Storm Stainless Steel Vertical Windlass

  • Polished stainless steel components
  • Rope chain combination gypsy for rope and chain combination or chain only
  • Rope Chain Management System (RCMS)
  • Quick release integrated swivel chain pipe cover
  • Gypsy with low profile clutch top arrangement
  • Heavy duty marine grade, dual direction motor in 12Vdc, 24 Vdc and Hydraulic
  • Independent gypsy and capstan operation
  • Capstan model features heavy duty knurled finish for increased grip
  • Quick fit adaptor
  • Stainless steel shaft
  • Cone clutch / brake
  • Stainless steel mounting bolts
  • Shaft seal
  • Self-lubricating bush
  • Clutch release handle
  • Installation/Operation booklet

Vessel Length

10 - 13 m (32 - 42 ft)

Power Supply

12 / 24 Vdc

Motor

1000 W

Hydraulic Pressure

8 MPa (1160 psi)

Hydraulic Flow

15 L/min (4 gal/min)

Max Load

500 kg (1100 lb)

Work Load

125 kg (275 lb)

Amps Work Load

100 / 60

Max Line Speed

15 m / min (48 ft / min)

Chain Size

6 - 8 - 10 mm (1/4 - 9/16 - 5/8”)

Rope Size

12 - 14 - 16 mm (1/2 - 9/16 - 5/8”)

Net Weight

DC VR 15 kg (33 lb)

DC VRC 16.5 kg (37 lb)

HYD VR 15.5 kg (34 lb)

HYD VRC 17 kg (38 lb)
