Ronstan Series 30 BB Triple Orbit Block - Becket, Non-swivel Shackle Head

Ronstan Series 30 BB Triple Orbit Block - Becket, Non-swivel Shackle Head

฿2,410
In stock, dispatched in 24 hours
To pre-order this variant call +66 (0) 76 239 113 or contact us:

Name:*

Email:*
Phone number:
Message: *
* Required Fields
Looking for wholesale pricing & volume discounts? Become a dealer! »»
Product Description

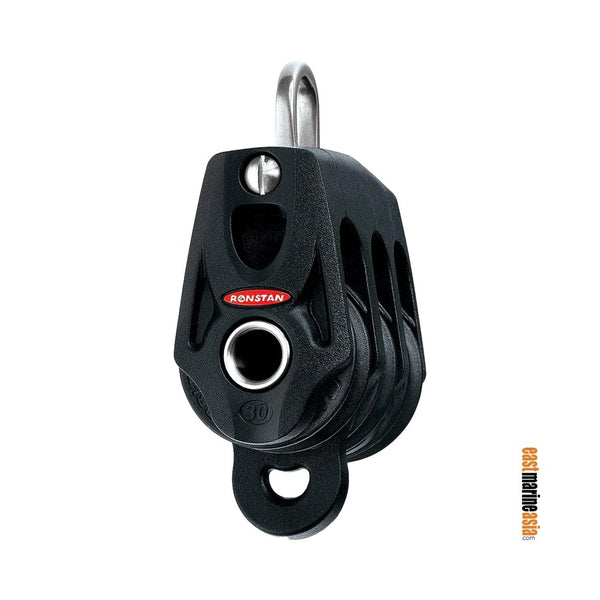

Ronstan Series 30 Ball Bearing Triple Orbit Block - Becket, Non-swivel Shackle Head - RF35312

  • Lightweight
  • Highest working load in its class
  • Secure, versatile attachment
  • Ultra low profile thru-sheave becket
  • Low friction 2-stage ball bearing system provides consistent performance over the full working load range


Applications

  • Mainsheet systems and spinnaker sheets on dinghies up to 5 m (16 ft)
  • Halyard, vang and backstay applications on boats up to 5 m (16 ft)
  • Control line applications on larger yachts


Materials

  • Sheave: High compression strength carbon black acetal
  • Ball Bearings: High compression strength acetal
  • Frame / Cheeks: Toughened, glass fibre reinforced nylon


Specifications

  • Sheave Ø: 30 mm
  • Max. Rope Ø: 8 mm
  • Max. Cable Ø: - mm
  • Pin Ø: - mm
  • MWL: 550 kg
  • BL: 1100 kg
  • Weight: 79 g
